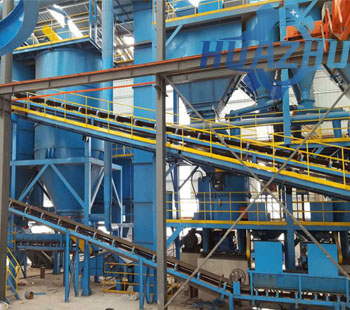

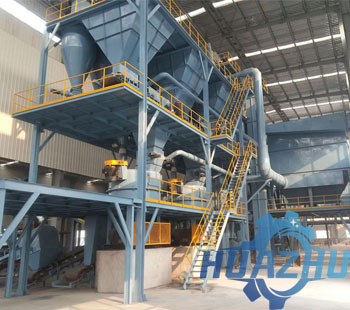

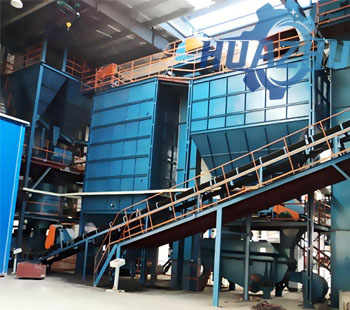

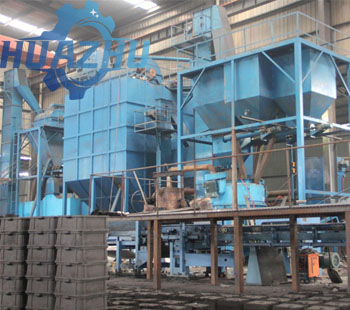

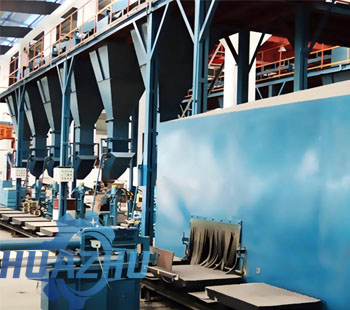

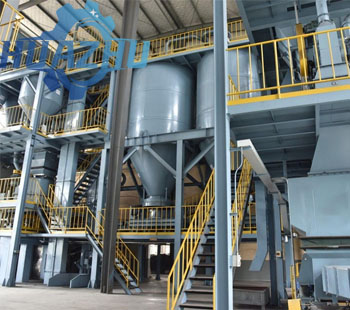

Clay sand casting production line

This clay sand production line is a core equipment for mass production in the foundry industry, suitable for various automatic molding lines, achieving full process automation of old sand processing, sand mixing, cooling, and transportation. The equipment operates stably and has flexible production capacity (suitable for various production capacity specifications of 5-50t/h), which can accurately control the quality of molding sand and reduce casting defects. It is equipped with a full process dust removal system, which meets environmental standards. Widely used in the production of castings such as construction machinery, auto parts, valves, etc., it is efficient, energy-saving, easy to maintain, and helps enterprises reduce costs, increase efficiency, and improve casting quality.

1. Old sand regeneration system: vibrating sand dropping machine, crushing and screening machine, regenerated sand cooling machine, dust removal device.
2. Sand mixing system: high-efficiency sand mixer, sand storage bin, moisture detector.
3. Conveyor system: belt conveyor, bucket elevator, scraper conveyor.
4. Intelligent control system: main control touch screen, sensor group, alarm system.

1. Separation of falling sand.
2. Regeneration of old sand.
3. Mix ingredients with sand.
4. Sand conveying.
5. Recycling and reusing.
6. Environmental protection treatment.

1. Full process automation: covering the entire process of regeneration, sand mixing, and transportation, reducing manual intervention, lowering labor costs by over 40%, and increasing production efficiency by 60%.
2. Flexible adaptation of production capacity: customizable with multiple production capacity specifications ranging from 5-50t/h, accurately matching different needs such as small-scale trial production and large-scale mass production.
3. Stable and durable operation: The core components (mixing machine blades, conveyor belts) are made of high-strength and wear-resistant materials, with a low failure rate and an equipment service life of over 15 years.
4. Intelligent and precise quality control: equipped with an intelligent molding sand control system, it accurately regulates the moisture content and compactness, reduces the defect rate of casting pores, sand holes and other defects by 80%, and increases the finished product rate to 98%.
5. Green environmental protection standard: Equipped with a full process pulse dust removal system, the dust emission concentration is ¡Ü 10mg/m ³, which meets the national environmental protection standards for the foundry industry.
6. Convenient operation and maintenance: The overall design is user-friendly, the operation interface is simple and easy to understand, and daily maintenance can be completed by only 2 people, reducing operation and management costs.
