Environmental Protection Equipment

Pulse bag filter

Author:Shot Blasting Machine Release Date:2026/1/6 16:58:59

What is a pulse bag filter

The pulse bag filter not only has the characteristics of strong dust cleaning ability, high dust removal efficiency, and low emission concentration of the jet pulse dust collector, but also has the characteristics of stability, reliability, low gas consumption, and small footprint, especially suitable for processing high air volume flue gas. Gas box dust collectors have been applied worldwide and widely promoted in China.

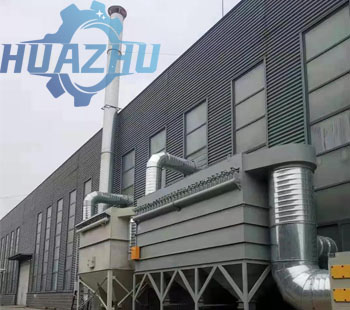

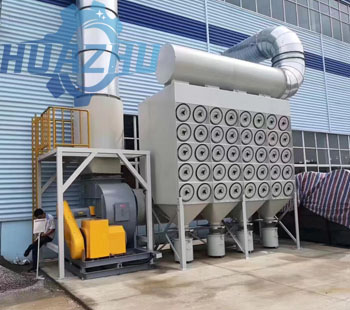

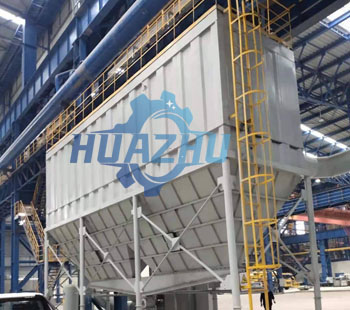

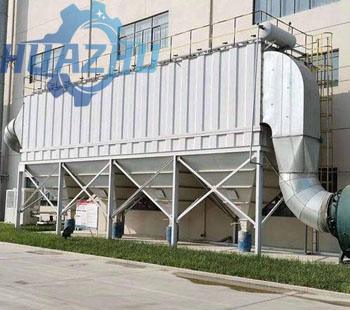

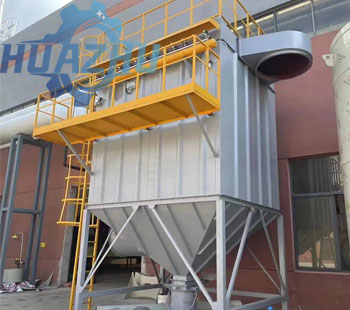

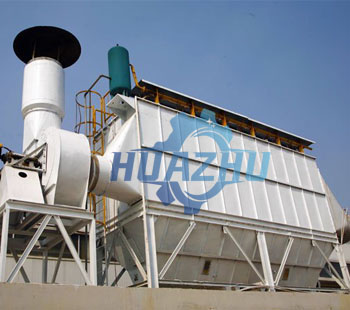

Pulse bag filter

Scope of application of pulse bag filter

Suitable for central dust collection and treatment in furniture and wood factories, casting factories, painting factories, building materials factories, stone factories, grain processing factories, powder metallurgy factories, chemical factories, mining factories and other places.

Advantages of pulse bag filter

1. The overall service life of the dust collector is>10 years;
2. The equipment can withstand negative pressure of 10000Pa, and the initial resistance of the dust collector is less than 1500Pa;
3. The air leakage rate of the equipment is less than 1%, and the pulse valve guarantees a two-year service life;
4. The filter bag ensures a service life of 12 months per set under normal operation of the equipment;
5. The PLC programmable control cabinet guarantees a five-year service life.

Technical parameters of pulse bag filter

MODEL	Power(kw)	total pressure(pa)	Number of bags	filtration area(m²)	Size(mm)	Weight(kg)	Air volume(m³/h)
DMC 5000	15	2600-3500	112	84	2500 2210 7250	3200	5000--5800
DMC 10000	22	2600-3500	224	168	5000 2210 7250	5200	10000--13000
DMC 20000	37	2600-3500	336	252	75000 2210 7250	6500	20000--25000
DMC 30000	45	2600-3500	448	336	10000 2210 7250	9200	30000--36000
DMC 40000	55	2600-3500	560	420	12500 2210 7250	11500	30000--36000
