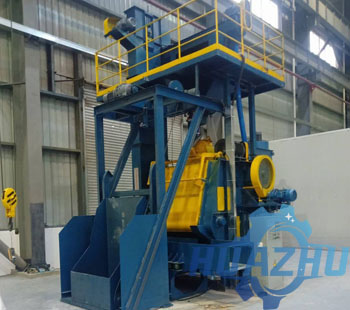

metal track shot blasting machine

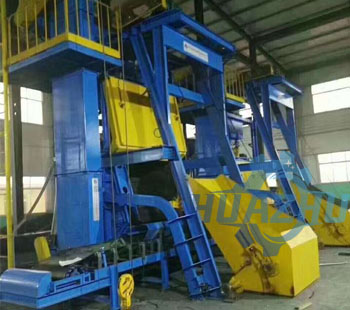

Metal track shot blasting machine, also known as steel track shot blasting cleaning machine.The GN series metal track shot blasting machine is used to remove sand, rust layers, oxide scales, and burrs on the surface of castings, forged parts, stamped parts, and other workpieces that are prone to rolling and falling, non brittle parts that are not easy to collide, and castings with shallow cores. The main users are machine tool factories, automobile factories, textile machinery factories, heat treatment workshops, steel casting workshops, and stamping workshops. Due to the good protection measures and strong shot blasting performance of the shot blasting machine of this model, it can also achieve satisfactory results in cleaning difficult workpieces.

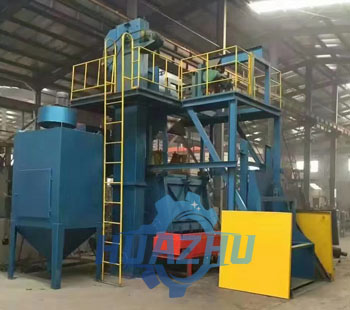

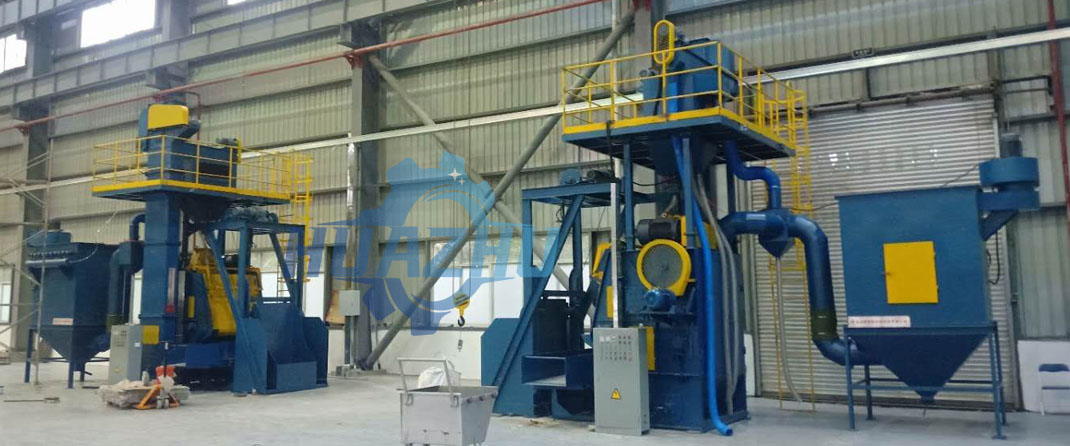

The GN series metal track shot blasting machine is classified according to equipment size, and there are mainly two models: 15GN and 28GN

(1) Grey cast iron/ductile iron parts: including engine cylinder blanks, gearbox housings, brake drums, wheel hubs, manhole covers, pipe fittings (such as cast iron elbows, tees), valve housings, water pump impellers, etc.
(2) Steel castings: including small gear blanks, connecting rod blanks, bearing seats, small steel castings for construction machinery (such as excavator bucket teeth blanks), etc.
(3) Nonferrous metal castings: aluminum alloy engine pistons, aluminum alloy wheel hub blanks, copper alloy pipe fittings, etc.
(4) Chassis system components: brake discs, brake shoes, steering knuckles, control arms, connecting rods, stabilizer bars, etc.
(5) Engine system components: valve spring seats, piston pins, crankshaft blanks, camshaft blanks, oil pump gears, etc.
(6) Body and accessory parts: car door lock accessories, door hinges, seat brackets, exhaust pipe lifting ears, small stamped parts (such as mudguard brackets), etc.
(7) Standard fasteners: such as bolts, nuts, screws, washers, pins, etc.
(8) Hardware tools: raw or finished parts such as wrenches, screwdrivers, pliers, hammers, axes.
(9) General mechanical accessories: such as bearing cages, gears (small and medium-sized), sprockets, chains, pulleys, couplings, flanges, etc.
(10) Aerospace industry: such as small aviation fasteners (such as aircraft specific bolts and nuts), small blade blanks for aviation engines, etc.
(11) Agricultural machinery industry: such as agricultural machinery gears, agricultural machinery bearing seats, plowshare blanks, seeder accessories, etc.
(12) Home appliance industry: such as refrigerator compressor accessories, washing machine drive shafts, air conditioning outdoor unit brackets, etc.

1. Open the cleaning room door and pour the metal workpiece into the room.
2. Close the door.
3. Activate the dust removal system.
4. Activate the metal track transmission device to drive the workpiece to flip at a constant speed.
5. Start the shot blasting machine.
6. After cleaning, stop the machine in the order of shot blasting machine track dust removal system.
7. Open the door and discharge the workpiece by reversing the track.

1.Strong load-bearing capacity, suitable for heavy-duty workpieces.
2.Wear resistant and impact resistant, with a longer service life.
3.High temperature and corrosion resistance, suitable for complex working environments.
4.Stable and reliable operation, with a more uniform cleaning effect.
5.Easy maintenance and low failure rate.
6.It will not cause serious wear to the track, and multiple specifications of steel shot abrasives can be selected.
