blast wheel

blast wheel is the core component of shot blasting machines, widely used in the fields of casting, forging, and metal surface treatment. It is mainly used to eject steel shot, thereby achieving the purpose of cleaning the surface oxide scale, rust removal, and strengthening of workpieces.

The models of blast wheels can be divided into many types based on power and design structure, such as Q034\Q034zz\Q033\Q035\Q036\Q037\Q038\Q039\Q063\Q065\Q0338\H98\H99\QGTE\Q063RK\Q0365\200-5.5RK Waiting series.
The power of the blast wheel motor includes 7.5kw, 11kw, 15kw, 18.5kw, 22kw, etc.

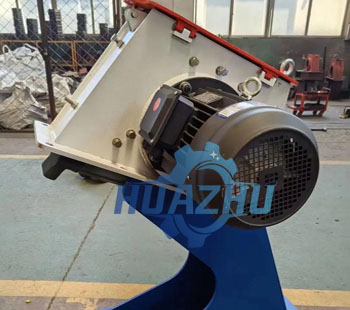

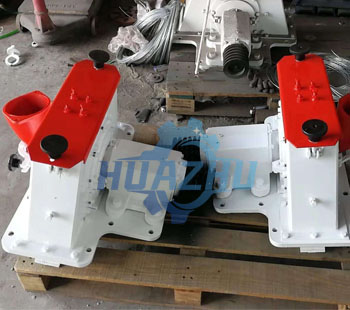

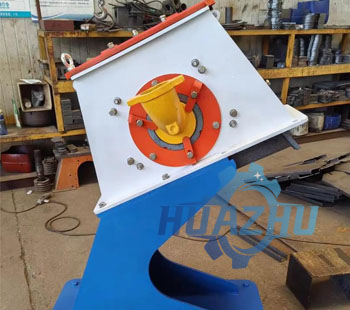

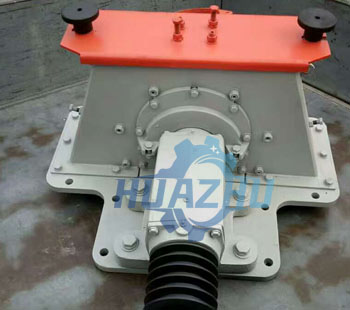

According to the connection method between the motor and the shot blasting wheel, it can be divided into direct connected blast wheels and belt type blast wheels

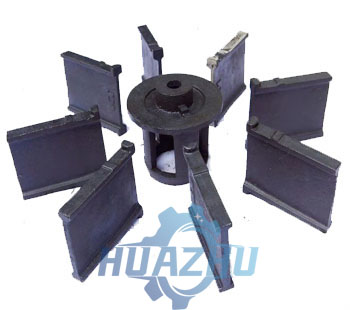

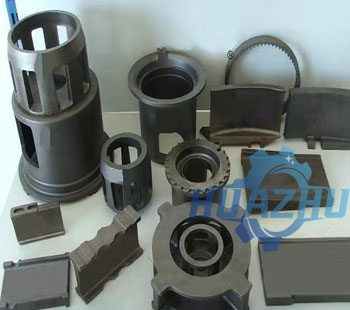

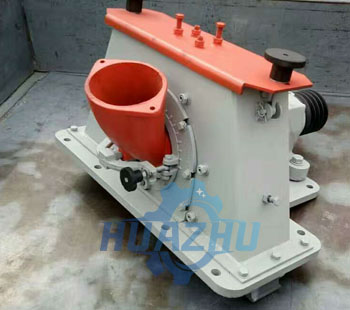

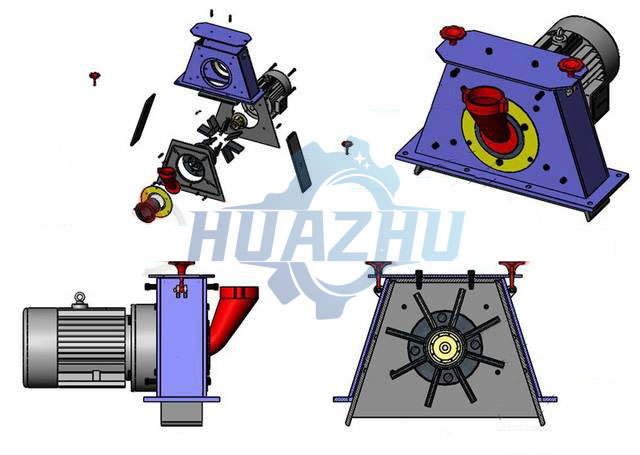

The composition of a blast wheel includes impeller, pellet wheel, directional sleeve, blades, top guard plate, side guard plate, end guard plate, blast wheel housing, guide pipe, motor (including 7.5kw, 11kw, 15kw, 18.5kw, 22kw, etc.), blast wheel spindle, spindle seat, etc.



1. Blast wheels can be used on Q326 series track type shot blasting machines (such as Q326, Q3210, Q3220).
2.Blast wheels can be used on Q37 series hook type shot blasting machines (such as Q376, Q378, Q3710, Q3720, Q7300, Q3750, Q37100, QT hook passing shot blasting machines, etc.).
3.Blast wheels can be used on roller passing shot blasting machines (such as Q698, Q6910, Q6912, Q6915, Q6918, Q6920, Q6925, Q6930, QXY6940, etc.).
4.Blast wheels can be used on mesh belt shot blasting machines and QGW steel pipe outer walls. Shot blasting machine, Q38 catenary shot blasting machine, Q48 catenary shot blasting machine, QH69 series steel shot blasting cleaning machine, Q35 series rotary table shot blasting machine, Q76 series desktop shot blasting machine, etc.
