Hook type shot blasting machine

Author:Shot Blasting Machine Release Date:2026/1/4 9:19:46

What is a hook type shot blasting machine

The hook shot blasting machine is suitable for surface cleaning and shot blasting strengthening of castings, forgings, and steel structural parts to remove sand and oxide scale on the surface of the workpiece. It is also suitable for surface cleaning and strengthening of heat-treated parts, effectively improving the appearance quality and surface process status of product components. It has been widely used in various fields such as aerospace, weapons and military industry, heavy equipment, transportation, chemical metallurgy, mechanical processing, etc.

What are the models of hook type shot blasting machines

There are many models of hook type shot blasting machines, including Q376, Q377, Q378, Q3710, Q3720, Q3730, Q3750, Q37100, QT37 hook through shot blasting machine, etc.

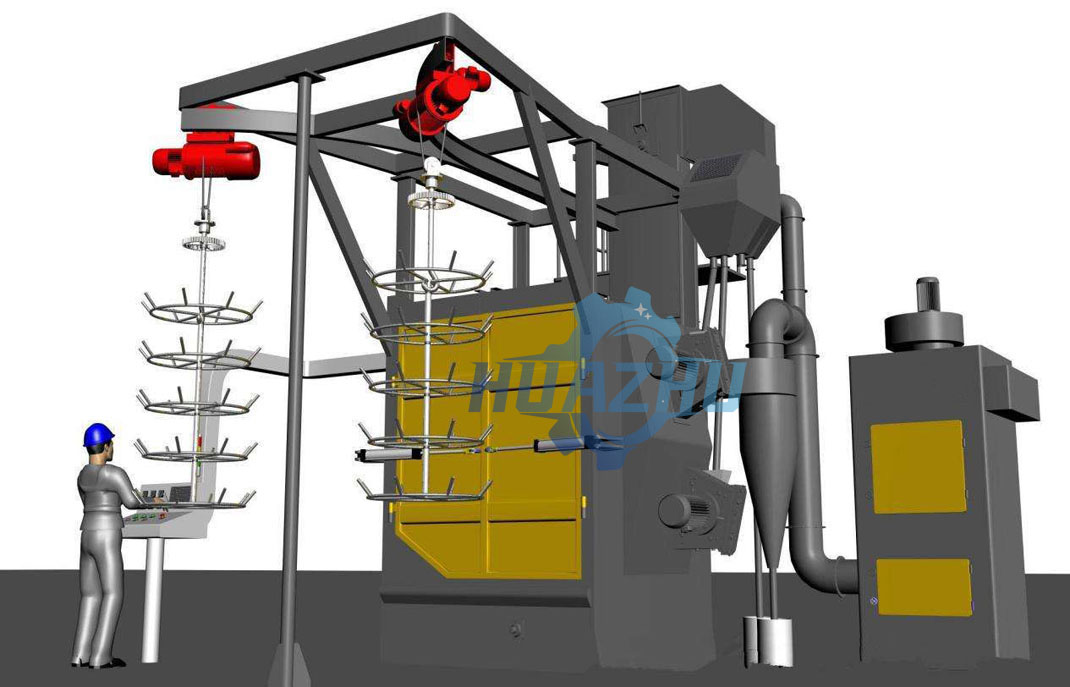

3D diagram of hook type shot blasting machine

3D diagram of hook type shot blasting machine

Technical data of hook type shot blasting machine

Mode	Q376	Q377	Q378	Q3710	Q3720	Q3730	Q3750	Q37100
Maximum weight of cleaning(kg)	600	700	800	1000	2000	3000	5000	10000
Max overall dimensions of suspender(mm)	∅ 600*1200	∅700*1200	∅1000*1600	∅1200*1800	∅1400*2200	∅1600*2300	∅1800*2500	∅3000*3000
Abrasive flow rate(kg/min)	2*200	2*200	2*250	2*250	3*250	3*250	4*250	5*250
Ventilation capacity(m³/h)	4000	4000	5000	5000	9000	11000	14000	16000
Machine power(approximate)	22.5	23.5	40	58	56	65	85	98

The workflow of hook type shot blasting machine

1. Hanging workpieces: Hang the workpieces that need to be cleaned on the hook, and do not overload the weight of the workpieces.
2. Send to the cleaning room: Start the hook, send the workpiece into the cleaning room, and close the door.
3. Start the dust removal system
4. Start the shot blasting machine and start the hook rotation
5. Stop the machine and unload the workpiece after cleaning is completed

What are the advantages of hook type shot blasting machine

1. The hook can rotate on its own, with no dead corners in all directions and good cleaning effect.
2. Suitable for various opposite sex workpieces.
3. Convenient loading and unloading, high degree of automation.
4. Simple structure, low equipment failure rate, and easy maintenance.
5. Small footprint.
